Please follow these steps:

• Review this FAQ to see if your issue is addressed.
• Check the current issues on the cluster here: https://hpc-community.unige.ch/t/2024-current-issues-on-hpc-cluster/ (A new post is created each year for reference).
• Post in the HPC-community under the category HPC issue > HPC support using the Template.

You can use the three clusters, but see this link to help you choose the right cluster.

Yes, according the terms of use you must include at least:

 "The computations were performed at University of Geneva using Baobab HPC service."

There could be several reasons for the cluster to slow down. It’s important to figure out where the slowness is happening:

• Login Node:If the login node feels slow, it might be because someone is running heavy processes on it, which isn’t recommended. The login node is meant for tasks like file editing, job submission, and monitoring—not running jobs. If another user is hogging the CPU resources, it could affect your experience, but this won’t impact the performance of jobs on the compute nodes.

• Compute Nodes: Slowness on the compute nodes might be due to high CPU usage, storage issues, or other factors, which could cause your jobs to run more slowly.

• Storage (Home, Scratch, Other): If there’s a problem with storage (like home directories or scratch space), it can slow down the entire cluster and affect your job performance.

What You Can Do: Make sure you’re not contributing to the slowdown. Use the `htop` command on the login node to check CPU usage. If you see that all the CPUs are in use, take a screenshot and send it to us at hpc@unige.ch so we can look into it.

The message is about the fact that the high performance computing serice known as Baobab will become a paid service after a free quota has been used. We sent the announcement to two mailing lists:

• baobab-announce: which includes all users of the Baobab service.
• hpc-community: very low-traffic mailing list containing all PIs and people interested in the HPC community. It may happen that you belong to the two mailings.

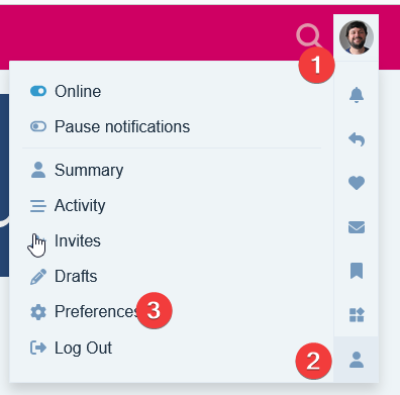

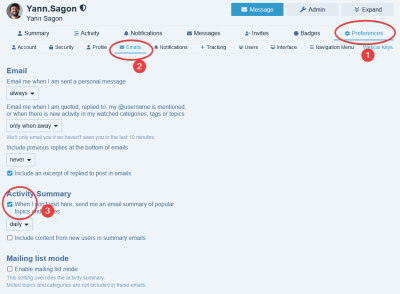

If you are a UNIGE member or have a switcheduid account, you can unsubscribe from the “hpc-community” list on sympa web interface.

An alternate method is to send an email to sympa@listes.unige.ch with the following mail body “UNSUBSCRIBE hpc-community”. This mail must be sent using the email you wish to unsubscribe from.

If you are not a UNIGE member or if none of the previous steps worked, please send a request to hpc@unige.ch, subject: “please unsubscribe me from the hpc-community mailing list”.

Please note that you can't unsubscribe from the “baobab-announce” list if you still have an account on the Baobab.

If you have access to one of the clusters, you can use the sshare command:

(baobab)-[root@admin1 ~]$ sshare  -a -A <your_isis_username>
Account                    User  RawShares  NormShares    RawUsage  EffectvUsage  FairShare
-------------------- ---------- ---------- ----------- ----------- ------------- ----------
isis_pi                                 41    0.014594    73169235      0.031775   0.221089
 isis_pi                  user1          1    0.000768      130935      0.000239   0.805648
 isis_pi                  user2          1    0.000768     5069653      0.000300   0.762562
 isis_pi                  user3          1    0.000768           0      0.000000   1.000000
 isis_pi                  user4          1    0.000768           0      0.000000   1.000000
 isis_pi                  user5          1    0.000768     1707102      0.000285   0.773432
 [...]

You can also use OpenXDmoD to check user usage. Note that the list may be incomplete: for example, if a registered user has never used the cluster in the time period you specify, they won't appear at all.

You can use sacctmgr for that purpose

sacctmgr show assoc where parent=<your_deptartment_name> cluster=baobab format=account

If you don't know the name of your departement as registered in our cluster, you can list them by faculty:

sacctmgr show assoc where parent=sciences cluster=baobab format=account
   Account
----------
     astro
      biad
     biani
     bicel
     [...]

We have a tutorial which explain how to do that.

Unfortunately, it seems that you need to do this operation for each partition separately.

User authentication isn't available at the moment. You can access all metrics without authentication. In the future, you'll be able to connect using your switcheduid credentials, with the benefit of being able to create custom dashboards.

The PI must be seen as a project. You can be part of two projects, and when you submit a job to the cluster, you can specify which project to charge to using the --account flag.

The Baobab service is free for courses as long as the usage is low and for a defined period of time. Please contact us in advance if you would like to organise such a course.

* If you have a non student account (Phd, postdoc, researcher), your account will expire at the same time your contract expire at UNIGE. Right now, there is a grace period after the end of your contract of around 6 months.

• If you have an outsider account, you need to check the expiration date you received when you filled the invitation.
• If you have an unige student account, you can check the expiration date with the chage command:

(baobab)-[yourusername@login2 ~]$ chage -l yourusername
Last password change                                    : Apr 01, 2022
Password expires                                        : never
Password inactive                                       : never
Account expires                                         : never
Minimum number of days between password change          : 0
Maximum number of days between password change          : 99999
Number of days of warning before password expires       : 7

Yes it is possible as long as you collaborate tightly with your former research group. Your PI must invite you as outsider. For technical reason, your account needs to be expired prior doing the request for the invitation. We'll then reactivate your account. You'll keep your data.

Unlike Windows systems, Linux and Unix systems do not display any characters (not even *) when you enter your password in a terminal. The field remains blank, and the cursor will not move.
Simply type your password and press Enter. Your connection should be successful.

Please be cautious not to mistype your password multiple times, as you may be temporarily blocked (see below).

We employ fail2ban on the clusters to prevent brute-force attacks.

If you enter the wrong password three times consecutively, you will be banned for 15 minutes (fail2ban will blacklist your IP address). After 15 minutes, you can attempt to connect again.

If you are still unable to connect after 15 minutes, please contact us with the following information:

• Your username
• Your IP address (you can find it using this web service).
• The cluster you are attempting to connect to.

It means the specified hostname cannot be found, either due to a typo or because the DNS can't resolve it.

• check the login node hostname

PS: Keep in mind that baobab2 has been decommissioned for 2 years.

This may occur because you attempted to connect multiple times with incorrect credentials (e.g., wrong username or password), causing your IP address to be blacklisted. Your IP address will be automatically unblocked after 15 minutes.

Please note that your Baobab/Yggdrasil password is the same as your ISIS password, which we do not manage. If you forgot your password or need to verify it, please use the following service: mdp.unige.ch.

No, your Baobab/Yggdrasil/Bamboo password is your ISIS password, and we do not manage it.

If you forgot your password or need to verify it, please use the following service:

• mdp.unige.ch.

• If you are a collaborator/student/external user Check on my-account
• If you are an Outsider user Check on applicant

For more informations please refer to ssh PublicKey page.

There are three possible reasons why you may not be able to connect:

• The cluster is under maintenance. Maintenance occurs periodically. Please check your email (including junk/spam folders) or visit the HPC-community for announcements.

• Your network is blocking access to our clusters or the SSH protocol. We use public IP addresses for the login nodes. If you cannot connect, please contact your local network administrator to determine if there are any restrictions on accessing login1.baobab.hpc.unige.ch, login1.yggdrasil.hpc.unige.ch, or login1.bamboo.hpc.unige.ch, or if port 22 is blocked. you can receive this message : ssh: connect to username@login1.baobab.hpc.unige.ch port 22: Connection timed out

• The login node is down. While unlikely, if this occurs, please wait a little or contact us if the issue persists beyond 15 minutes.

We have already identified a number of common problems:

• Check the general FAQ: connection_to_cluster
• Check your quota; reaching the limit will prevent you from writing to your directory, which means X2Go won’t be able to initialize the necessary configurations.
• If you're using Anaconda/conda, try commenting out the conda block in your .bashrc file.

# >>> conda initialize >>>
# !! Contents within this block are managed by 'conda init' !!
__conda_setup="$('/path/to/your/anaconda3/bin/conda' 'shell.bash' 'hook' 2> /dev/null)"
if [ $? -eq 0 ]; then
    eval "$__conda_setup"
else
    if [ -f "/path/to/your/anaconda3/etc/profile.d/conda.sh" ]; then
        . "/path/to/your/anaconda3/etc/profile.d/conda.sh"
    else
        export PATH="/path/to/your/anaconda3/bin:$PATH"
    fi
fi
unset __conda_setup
# <<< conda initialize <<<

• Make a backup(steps by steps) of the folowing files or directories and try to login again:
  1. ~/.bashrc
  2. ~/.Xauthority
  3. ~/.x2go
  4. ~/.local/session
  5. ~/.config/xfce

For detailed information on all storage-related topics, please refer to our Storage page. This page provides comprehensive guidance on file storage, recovery, and managing storage space efficiently.

If you need to store a large amount of data, consider using the “Academic NAS” service, which you can find here: Academic NAS.

To access a shared directory, you need to be added to the appropriate group.

Please send an email to hpc@unige.ch including relevant information (Uusername, Group, private_partion etc…) with the responsible person for the share or partition in CC. The responsible person must approve the modification.

You can find information about available applications here

Please check this documentation.

Baobab is a GNU/Linux only machine, like the majority of academic clusters. If you have a windows software that could run on a Windows cluster, contact us at hpc@unige.ch, perhaps we could find some solutions.

Yes we can install it, but you should pay the required license. Send us a request at hpc@unige.ch.

No, please check the Apptainer documentation.

If you run a program and it crashes with an error “Illegal instruction” the reason is probably because you have compiled your program on Baobab login node and your program is running on an older compute node on which the CPU lacks some specialized functionality that were used during the compilation.

You have two possibilities:

1. Recompile your program with less optimization, or compile on an older node. See Advanced users
2. Only run your program on newer servers. See Specify the CPU type you want and Compute nodes.

You need to distinguish between the system-installed Python package and the Python versions provided by module or easybuild. Since we support a variety of software needs for our users, we use module to manage different software versions, including multiple Python versions. To switch between them, you can use the module command to load the specific Python version you need.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
  Python:
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
    Description:
      Python is a programming language that lets you work more quickly and integrate your systems more effectively.

     Versions:
        Python/2.7.11
        [...]
        Python/3.11.5

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
  For detailed information about a specific "Python" package (including how to load the modules) use the module's full name.
  Note that names that have a trailing (E) are extensions provided by other modules.
  For example:

     $ module spider Python/3.11.5
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

No, you cannot load two versions of the same software simultaneously. Additionally, if two software packages depend on different GCC versions, you will not be able to load them at the same time.

In this case you need to check if there is another version available compatible with the toolchain (GCC, foss etc…) you want to use. If not, please refer to The software I need is not available on Clusters: what should I do ?.

Slurm is a job scheduling system used to manage and allocate resources in a computing cluster. It helps you submit, monitor, and control jobs (tasks) on the cluster. Please take a moment to review this very important section: Slurm and job management

As a reminder: It is forbidden to run heavy compute jobs on the login nodes, you must use a compute node instead.

Have a look at this scheduler “rosetta stone”, available here:
http://slurm.schedmd.com/rosetta.pdf

No never. You must use SLURM to run any test. The debug partition is dedicated to small tests.

No. Unfortunately you can't. If we raised this limit, you will have to wait longer before having your pending jobs started. We think that the 4 days limit is a good trade-off.

However there could be two work-around if you experience an issue with this limit:

1. Some software feature checkpointing. During runtime, the program will periodically save its current state on the disks. In that case, this snapshot may be used to resume the computation by another job. Check if your program allows checkpointing. If you cannot find the information, try contacting the developer or ask us at hpc@unige.ch.
2. You could add private notes to Baobab. In that case the limit will be raised to 7 days or even higher. If you are interested, contact us.



See here

To get the priority calculation details of the jobs in the pending queue, you can use the command: sprio -w. You can also have a look at the weights, by typing sprio -l.

See

• Which partition for my job
• Job priorities
• Stop wasting resources

Yes, you can. But it is really awkward because you cannot be sure when your job will start.

See Interactive jobs

You may be interesting about OpenOnDemand which provide a graphical to start Interactive session ( JupyterLab, MatLab, VScode, R etc…)

In that case you can use the job arrays feature of SLURM. Please, have a look at the documentation Job array

Indeed, we are reserving two cores per node for system tasks such as data transfer, and os stuff.

(yggdrasil)-[root@admin1 ~]$ scontrol show node cpu001
NodeName=cpu001 Arch=x86_64 CoresPerSocket=18
   CPUAlloc=0 CPUEfctv=34 CPUTot=36 CPULoad=0.01
   AvailableFeatures=GOLD-6240,XEON_GOLD_6240,V9
   ActiveFeatures=GOLD-6240,XEON_GOLD_6240,V9
   Gres=(null)
   NodeAddr=cpu001 NodeHostName=cpu001 Version=23.02.1
   OS=Linux 4.18.0-477.10.1.el8_8.x86_64 #1 SMP Tue May 16 11:38:37 UTC 2023
   RealMemory=187000 AllocMem=0 FreeMem=185338 Sockets=2 Boards=1
   CoreSpecCount=2 CPUSpecList=17,35 <==================== this means we have two specialization cores <<<<
   State=IDLE ThreadsPerCore=1 TmpDisk=150000 Weight=10 Owner=N/A MCS_label=N/A
   Partitions=debug-cpu
   BootTime=2023-08-10T12:08:11 SlurmdStartTime=2023-08-10T12:09:00
   LastBusyTime=2023-08-11T10:06:42 ResumeAfterTime=None
   CfgTRES=cpu=34,mem=187000M,billing=34
   AllocTRES=
   CapWatts=n/a
   CurrentWatts=0 AveWatts=0
   ExtSensorsJoules=n/s ExtSensorsWatts=0 ExtSensorsTemp=n/s

If you really need to use all the cores of a compute node, you can override this parameter: –core-spec=0. This will implicitly lead to an exclusive allocation of the node.

ref: https://slurm.schedmd.com/core_spec.html

To use a private Slurm partition, you need to be added to the appropriate group.

Please send an email to hpc@unige.ch including relevant information (Uusername, Group, private_partion etc…) with the responsible person for the share or partition in CC. The responsible person must approve the modification.

Please refer to this keymap-issues-with-nx-from-mac-os-x for a potential solution.

You can resolve this issue by following Step #1 here.

Please ensure that you close all open terminals on your Mac and relaunch them.

This issue likely arises because Xorg is no longer provided natively on macOS. You need to install XQuartz.

Refer to this solution: macOS High Sierra and X11 Forwarding.

Please follow these links for support:

1. SWITCH edu-ID Account - Welcome
2. How to Create or Verify Your SWITCH edu-ID Account and Link It to UNIGE

Ensure that you are using the email address linked to your Switch edu-ID account.

Please also note that your ISIS (UNIGE) password and your Switch edu-ID password are not the same. Verify that you are using the correct password when logging in.
